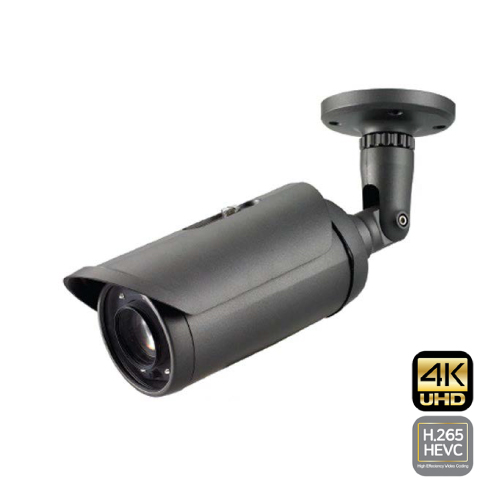

RT-IBC502T


제품 주요 특징

  • 1/1.8” CMOS Image Sensor
  • 해상도 4K
  • 지능형 이미지 프리셋 기능
  • AI기발 객체 감지 기능(사람, 자동차, 오토바이, 자전거, 번호판 등)
    *객체 상세 분류 : 성별, 색상, 모자, 마스크, 가방, 차량 종류 등
  • AI 기반 분석 속성값 제공(attribute date)
  • 최대 줌(optical x18 / IP x10)
  • 최대 30fps@3840x2160
  • 쿼드 스트리밍 지원(Pri:H.265/H.264, Sec x3 : H.265/H.264/MJPEG)
  • 야간 최대 가시거리 80M 지원
  • 지능형 영상분석기능
    *IVA : 가상선/영역, 출입 감지, 배회, 방향 감지, 발생/소멸 감지 등
    *분석 이벤트 : 디포커스 감지, 움직임 감지, 템퍼링, 오디오 감지

모델명
RT-IBC502T
Camera
Functions
Motion detection
8 Regions on 23x15 cells
Privacy masking
8regions (Polygons of 8 points)
Video analytics
Motion detection, object detection, face detection, intrusion detection,
missing object detection, abandoned object detection, line counting, ANPR,
vehicle speed detection, directional detection, defocus detection, object blurring
IR LED
8 pieces, Max 80m
Burn-in OSDCamera title, direction, user-defined Multi-lingual; (English, Korean, French, German, Spanish,
Italian, Russian, Japanese, Swedish, Portuguese, Dutch, Hungarian, Finnish, Special Symbols)
Imaging
Sensor
1/1.8” CMOS Image Sensor
Zoom
Optical 18x
Focal length
F = 6.8 ~ 122.4mm
Angle of view
Horizontal : 58.4˚(wide) 3.2˚(tele), Vertical : 35˚(wide) ~ 1.9˚(tele)
Maximum
aperture ratio
F1.61 ~ F4.13
Focus control
Oneshot AF
Lens type
DC auto iris
Min illumination
Color : 0.01Lux(1/30sec, 30IRE), BW : 0 Lux(IR ON)
Electronic shutter speed
1/1 ~ 1/100,000 sec
Day & night
Day / Night / Auto
Back light compensation
BLC / HLC / WDR
White balance
Auto tracing white / Auto white / Manual
Gain control
Auto
Noise reduction
Auto / Manual
Image stabilization
Support
Defog
Support
Image rotation
Horizontal(Mirror), Vertical(Flip)
Audio
Compression
G.711 u-law
Sampling rate
G.711 : 8KHz
Bitrate
G.711 : 64Kbps
StreamingFull-duplex
Input & Output
1 x line-in(mono), 1 x line-out(mono)
Video
Compression
Ethernet 10/100 /1000 base-T (RJ-45)
Frame rate

IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP,DHCP, HTTP, HTTPS, RTP, RTSP,FTP, SNMP, SMTP, UPnP,

WS-Discovery,Zero Configuration, NTP, DDNS, RTMP

Bitrate control
Password protection, IP address filtering, HTTPS encryption
Resolutions
Truen protocol/SDK, ONVIF, PSIA, MPEG-TS
Streaming
Quad Streaming: Primary : H.264 / H.265, Secondary x 3 : H.264 / H.265 / MJPEG
Event and Alarm
Event sources
Video analytics, Audio detection, Client disconnection, Sensor input, User-defined event
Event actions
E-mail notification, OSD alert, FTP upload, PTZ Preset, Alarm control, Recording, HTTP action


Network
Interface
Ethernet 10/100/1000 base-T (RJ-45)
Protocol
Ipv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP
Security

Basic/Digest authentication, HTTPS, IP address filtering, User access log, TTA certification

Application programming interface
ONVIF, PSIA, MPEG-TS

Power / Operating Conditions
Power supply
DC 12V/3.0A, PoE(Power over Ethernet) : 802.3at
Power consumption
DC12V/PoE : Max 30W
Operating condition
-20˚C ~ 70˚C / Less than 90% RH
Storage condition
-50˚C ~ 60˚C / Less than 95% RH
General
Certifications
IP67, IK10, KC
External devices
1 x Sensor-In (dry contact, NO/NC), 1 x alarm-Out (dry contact, NO)
1 x RS-485 port : Z/F control etc.
Edge storage
Micro Sd/SDHC/SDXC (Max 512GB)
Color/Material
Body: Gray / Aluminum    Head: Gray/Aluminum
RAL code
Gray: TBD
Dimension
Φ108 x 391.5mm
Weight
1.750kg
펌웨어 / 해쉬정보

모델명 : RT-IBC502T

버전 : V13.307B09_T101

파일명 : V13.307B09.tus

방식 :  SHA-256

해쉬값 : 5347a744dc190904b3d9c2d2ca1acbee8bbf8c96b4e50139f5e7acdbcd3e5818
